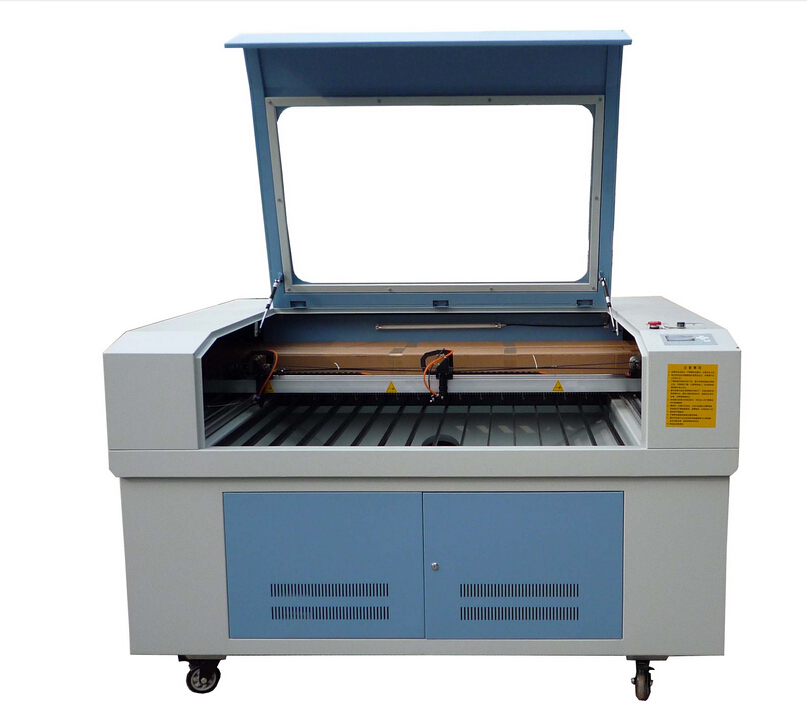

laser engraving and cutting machine
Laser engraving and cutting mach
Technical Parameter
|
Model NO. |
SM-9060 Laser Cutting Machine |
|
Cutting Area |
900 x 600mm |
|
Laser Power |
60W/80w/100w/150w for optional |
|
Laser Type |
CO2 Sealed Laser Tube,Water-cooled,10.6um |
|
Engraving Speed |
0-60000mm/min |
|
Laser Output |
1-100% Software Setting |
|
Reposition Accuracy |
≤0.01mm |
|
Power Supply |
220V/50HZ , 110V/60HZ |
|
Operating Temperature |
0 - 45°C |
|
Operating Humidity |
5 - 95% |
|
Min. Shaping Character |
English 1.0 x 1.0mm |
|
Graphic Format Supported |
PLT, DXF, BMP, AI, DST |
|
Software Supported |
TAJIMA, CorelDraw, Photoshop, AutoCAD |
|
Driving System |
Stepper Motor and driver |
|
Cooling Mode |
Water-cooling and Protection System |
|
Equipment Dimensions |
1450x1100x1070mm |
|
Net Weight/Gross Weight |
230KGS/300KGS |
|
Shipping Dimensions |
1500 x 1200 x 1300mm |
|
Optional Spare Parts |
Up-down Worktable, Rotary Attachment, Red Light Pointer |
|
Recommended Spare Parts |
Laser Tube and Lens |
